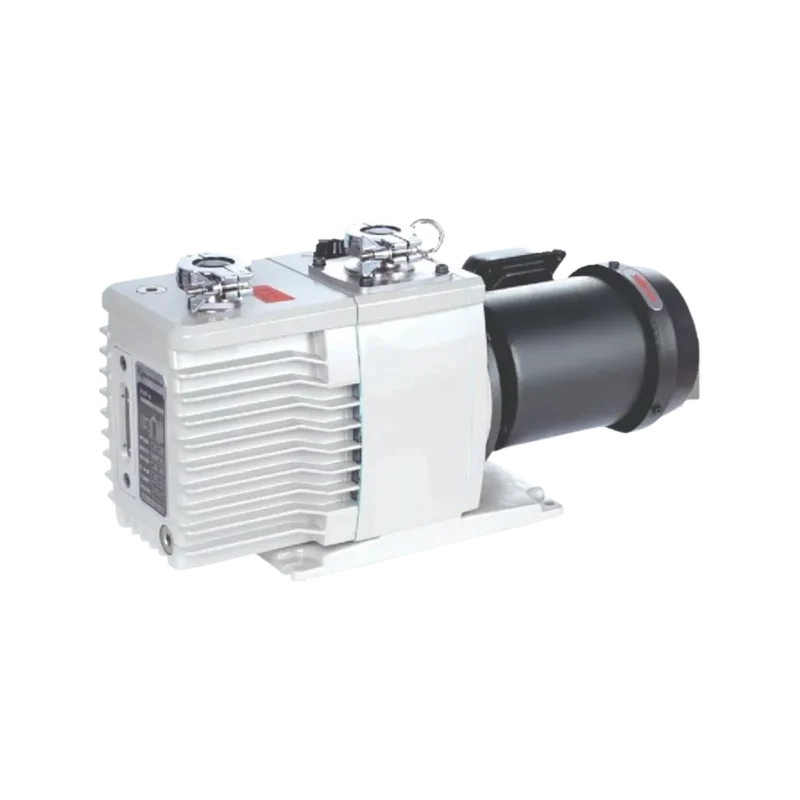

Double-stage oil-lubricated rotary vane vacuum pumps – REICH DOV – 2

Name: Double-stage oil-lubricated rotary vane vacuum pumps - REICH DOV - 2 » Reich Pumbs
SKU: DOV - 2
Price: 1.00 EUR
Availability: InStock

The DOV series vacuum pumps are oil-sealed, direct-coupled rotary vane units designed for high performance and durability. Manufactured with cutting-edge technology and optimized to meet the demands of both the domestic and international markets, these pumps stand out for their speed, quality, and reliability. Key components of this series are made with premium raw materials processed overseas to ensure optimal performance. Their main advantages include a high ultimate vacuum, low noise, minimal vibration, high efficiency, and stable and reliable performance.

Secure your production with our exclusive vacuum pumps.

ITP offers quality and warranty.

Reference images.

1,00 €

SKU: DOV - 2 Categories: Double Stage Lubricated Rotary Vane, Vacuum Pumps

low rate 2.4 L/s
Partial final pressure 4x10-2 pa
Final final pressure 4x10-1 pa
Partial final pressure: 1.2 pa
Final final pressure: 3 pa
Nominal motor speed: 1680 rpm
Nominal motor power: 0.66 / 0.48 kW
Fuel inlet: 25KF DN
Fuel outlet: 25KF DN
Oil capacity: 1.2 L
Ambient temperature: 8 - 40°C
Noise level: ≤ 50 dB
Approximate weight: 23 kg
