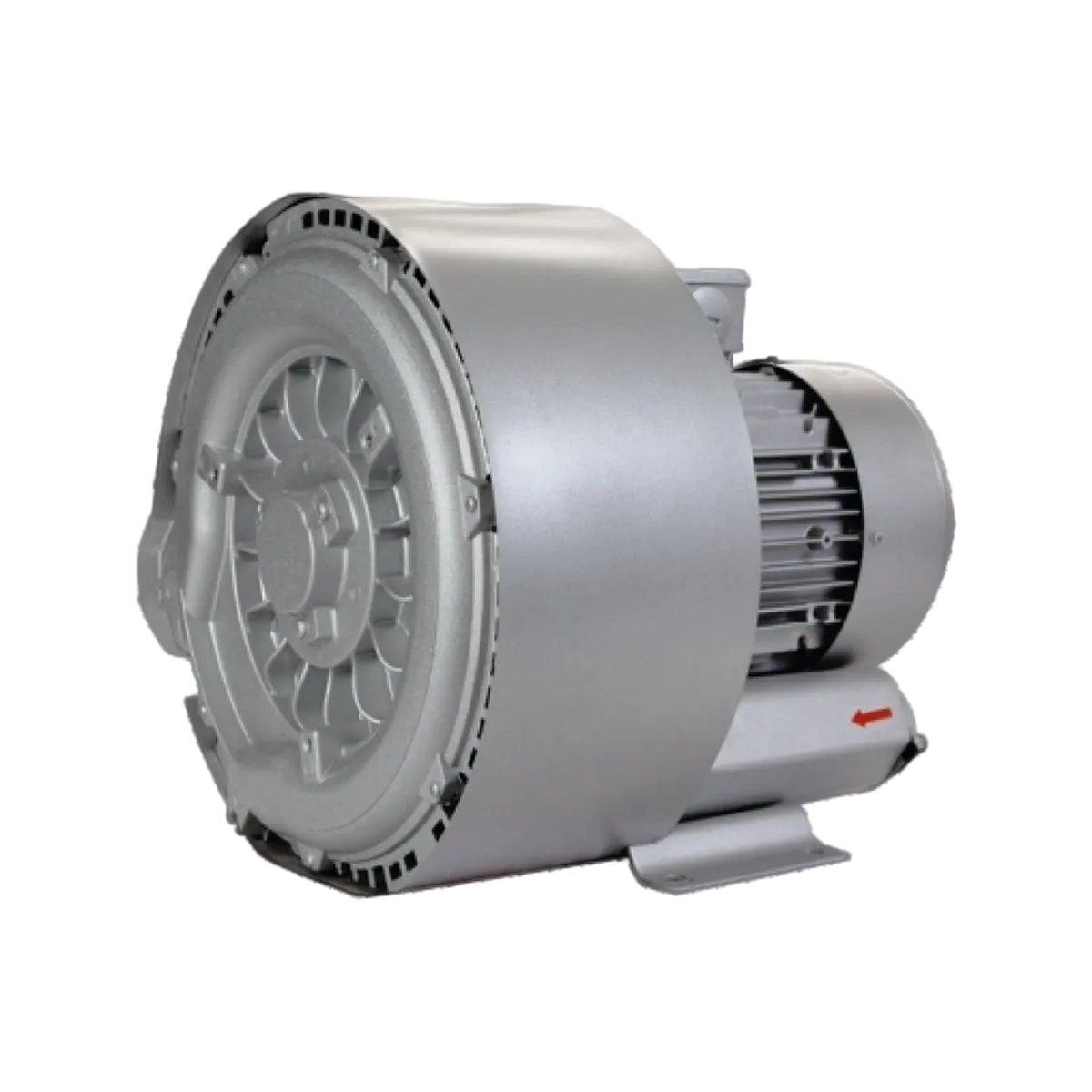

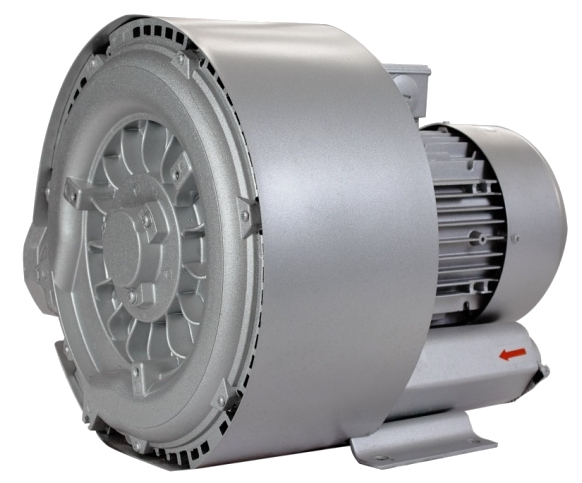

Dual-stage side channel blower
SC blower with toroidal channel, centrifugal design for gas pressure.
1,00 €
Request more details about the product
The SC side-channel blower increases the pressure of the inlet gas by creating a series of vortices in the peripheral toroidal channel, caused by the centrifugal thrust of the rotor, which is directly coupled to the motor shaft. Its technical specifications include: As the rotor rotates, the blades push the gas forward and outward due to centrifugal force, producing a helical motion. During this motion, the gas is recompressed several times, resulting in an increase in pressure along the channel.
Specs:
| Model | Voltage | Power | Pressure | Empty | Flow | Weight | Dimensions |
|---|---|---|---|---|---|---|---|
| SC-D103 | 380/220v | 0.83kw | 31 kpa | -29 kpa | 103 m³/h | 16.4 kg | 315x300x275mm |
| SC-D170 | 380/220v | 1.75kw | 52 kpa | -37 kpa | 170 m³/h | 28 kg | 410x322x315mm |
| SC-D180 | 380/220v | 2.55kw | 54 kpa | -38 kpa | 180 m³/h | 31 kg | 428x372x340mm |
| SC-D245 | 380/220v | 3.45kw | 57 kpa | -38 kpa | 245 m³/h | 38 kg | 473x380x365mm |
| SC-D350 | 380/220v | 4.6kw | 78 kpa | -42 kpa | 350 m³/h | 51 kg | 526x408x408mm |
| SC-D385A | 380/220v | 6.3kw | 85 kpa | -51 kpa | 385 m³/h | 69 kg | 652x426x408mm |
| SC-D385B | 380/220v | 6.6kw | 88 kpa | -52 kpa | 385 m³/h | 74 kg | 685x604x408mm |
Add a review
Dual-stage side channel blower
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
RELATED PRODUCTS
1,00 €
SKU:

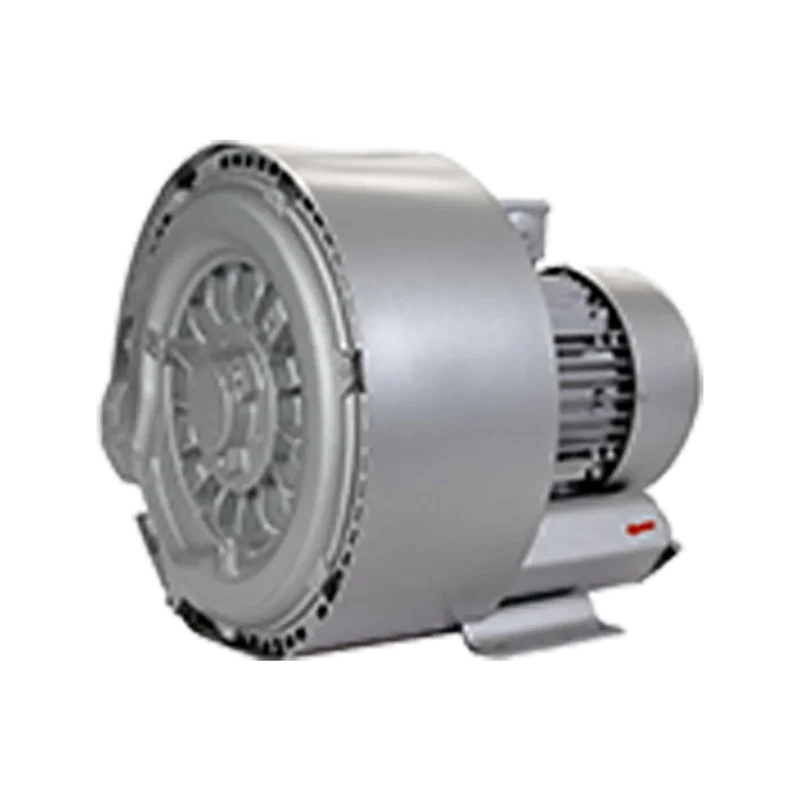

SC-D103 - SC-D385B
1,00 €
SKU:

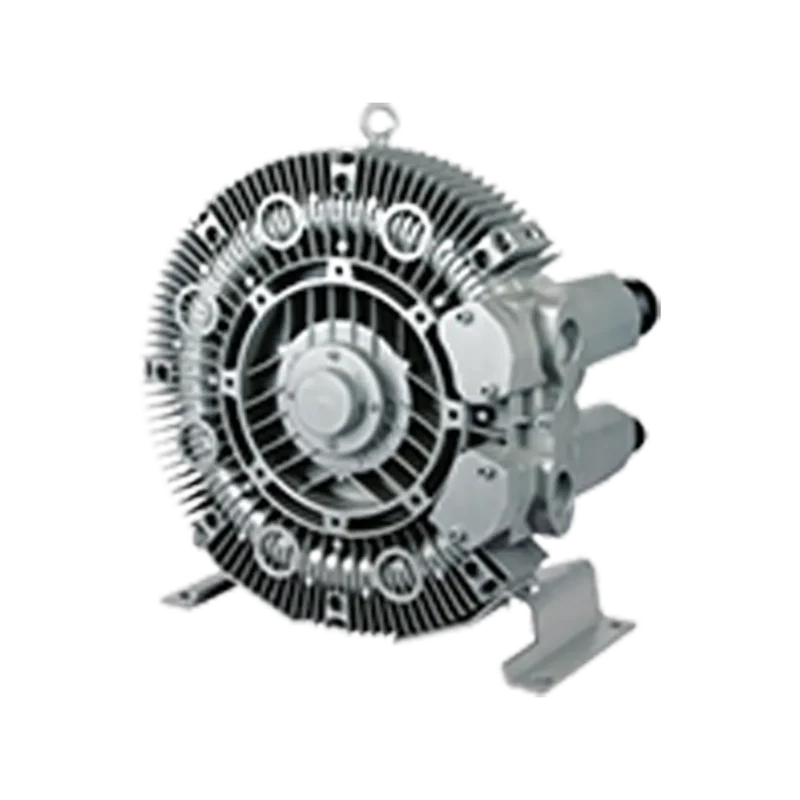

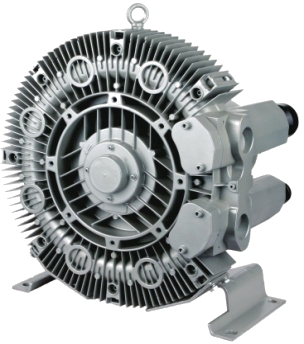

SC-H57 - SC-H195
1,00 €
SKU:
SC-M76 - SC-M280
1,00 €
SKU:

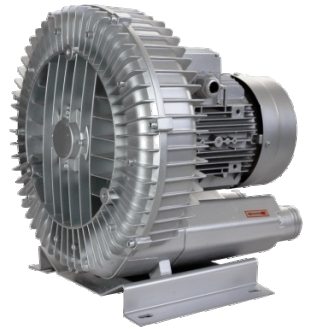

SC-MT120
