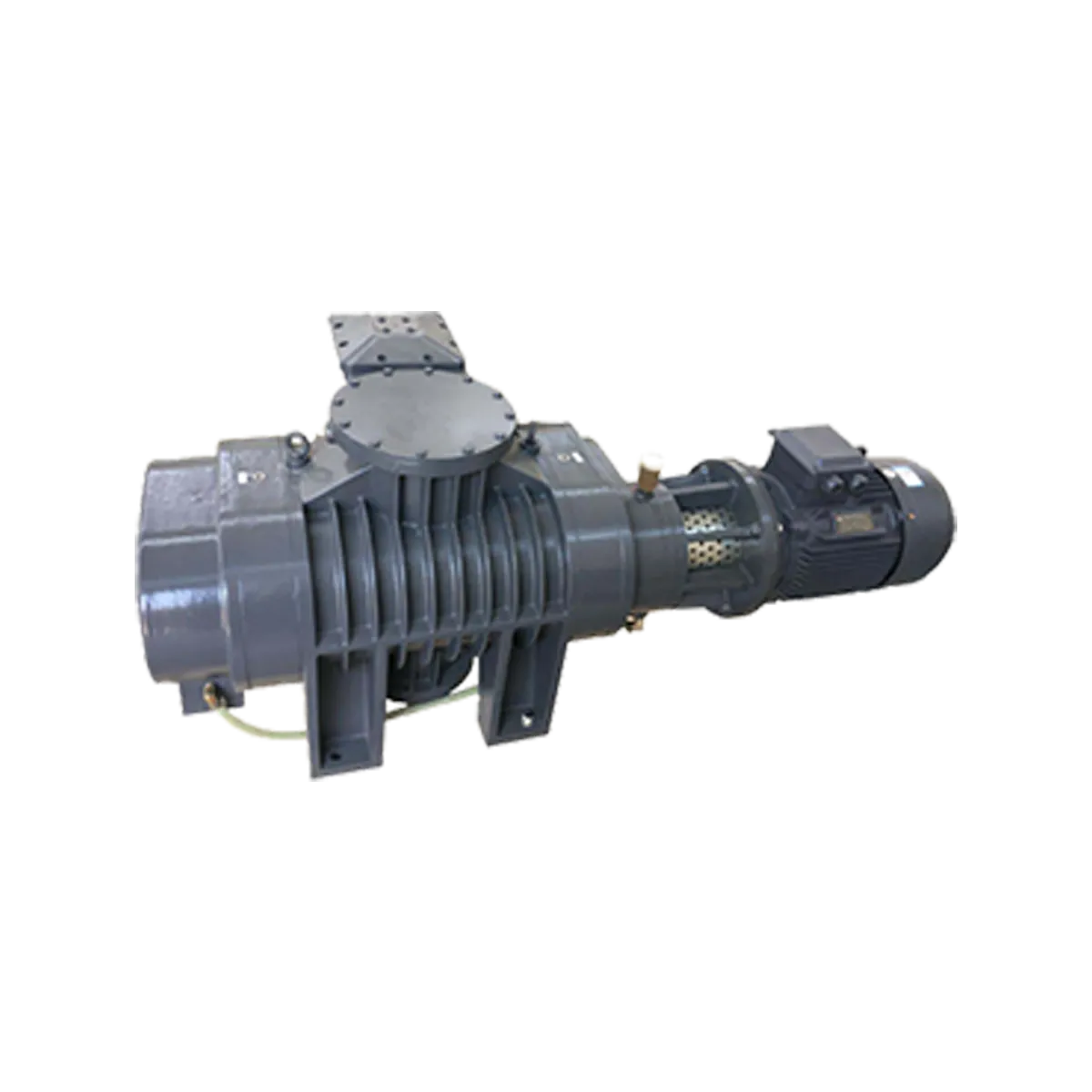

Lobe vacuum pumps – Roots TZJP-70 – TZJP-2500
Roots TZJ positive displacement pump, for medium and high vacuum.
1,00 €
Request more details about the product
The Roots TZJ series vacuum pump is a positive displacement pump, ideal for achieving medium and high vacuum levels. Its advanced design ensures exceptional and efficient performance in a variety of industrial applications.
Its technical specifications include:
Technical specifications | |
| Flow | 150 l/s |
| Final pressure | 5×10⁻² Pa |
| Maximum allowable differential pressure | 48×10⁻³ Pa |
| Motor speed | 3408 rpm |
| Motor power | 2.2 kW |
| Inlet flange size | 100mm |
| Outlet flange size | 100mm |
| Water consumption | 120 L/h |
| Permitted temperature | 100°C |
| Weight | 205 kg |
