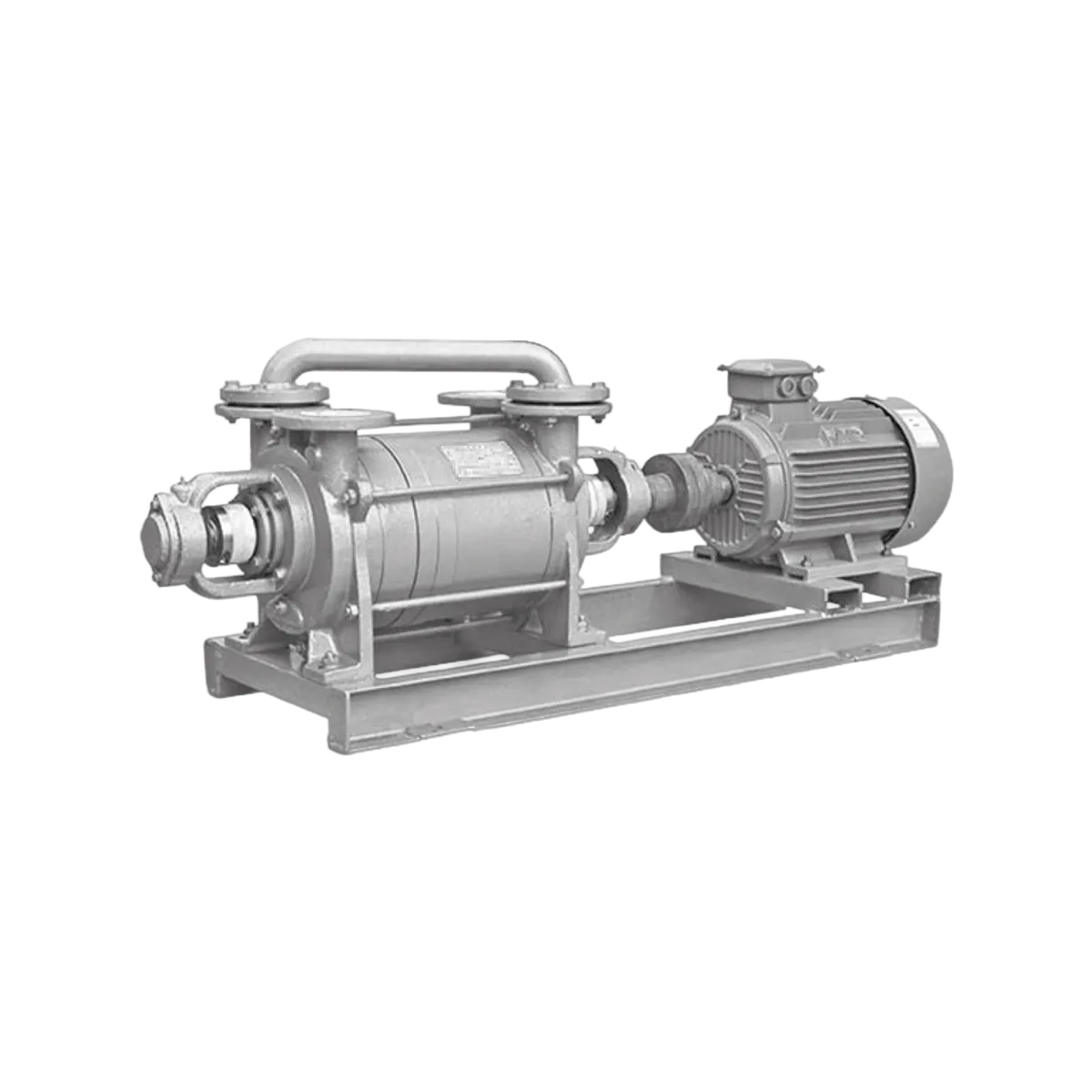

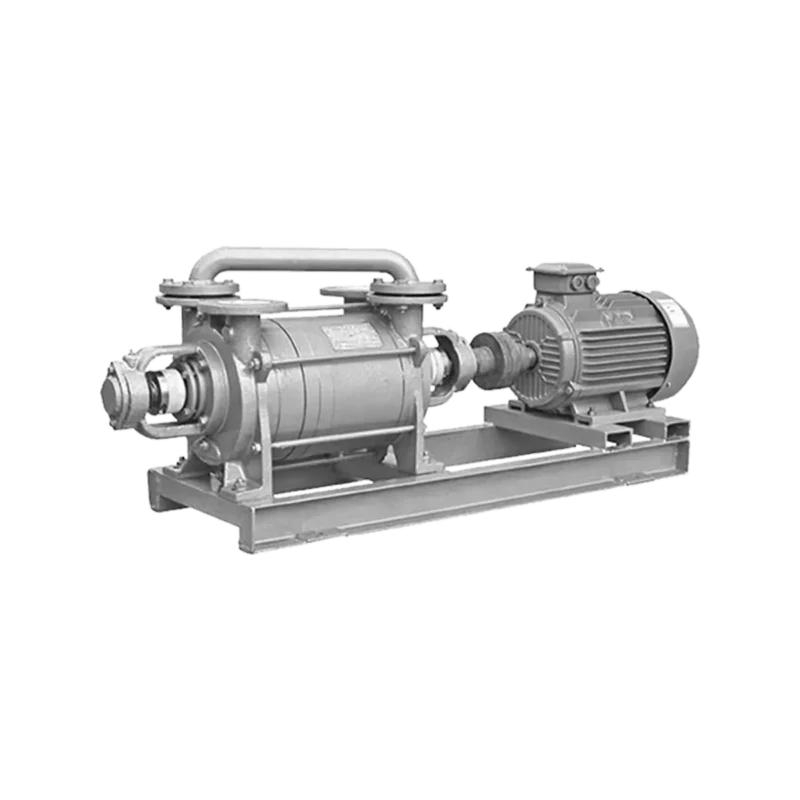

LRDS Series Double-Stage Liquid Ring Vacuum Pumps
Two-stage, high-vacuum LRDS pumps for efficient pumping of non-corrosive gases.
1,00 €
Request more details about the product
The LRDS series two-stage water ring vacuum pump is used to pump air and other non-corrosive, water-insoluble, and particle-free gases into airtight containers to achieve higher vacuums. Its technical specifications include: It is widely used in vacuum evaporation, concentration, resuspension, impregnation, drying, and melting in the food, textile, chemical-medical, metallurgical, and electronics industries. It features a high vacuum rating, high pumping speed in high-vacuum areas, compact design, reliable operation, and easy maintenance.
Description:
| Model | Vacuum (mbar) | Flow (m³/min) | Power (kW) | Speed (rpm) | Water consumption (lpm) | Weight (kg) | Size (mm) |
|---|---|---|---|---|---|---|---|
| LRDS 108 | -0.098 | 1.8 | 4.8 | 1728 | 10-15 | 140 | 40 |
| LRDS 216 | -0.098 | 3.6 | 9 | 1740 | 15-20 | 180 | 40 |
| LRDS 432 | -0.098 | 7.2 | 18 | 1752 | 25-35 | 250 | 70 |
| LRDS 864 | -0.098 | 14.4 | 28.4 | 1164 | 40-50 | 400 | 100 |
| LRDS 1560 | -0.098 | 24 | 54 | 888 | 60-80 | 550 | 125 |
| LRDS 2160 | -0.098 | 36 | 66 | 888 | 70-90 | 700 | 125 |
