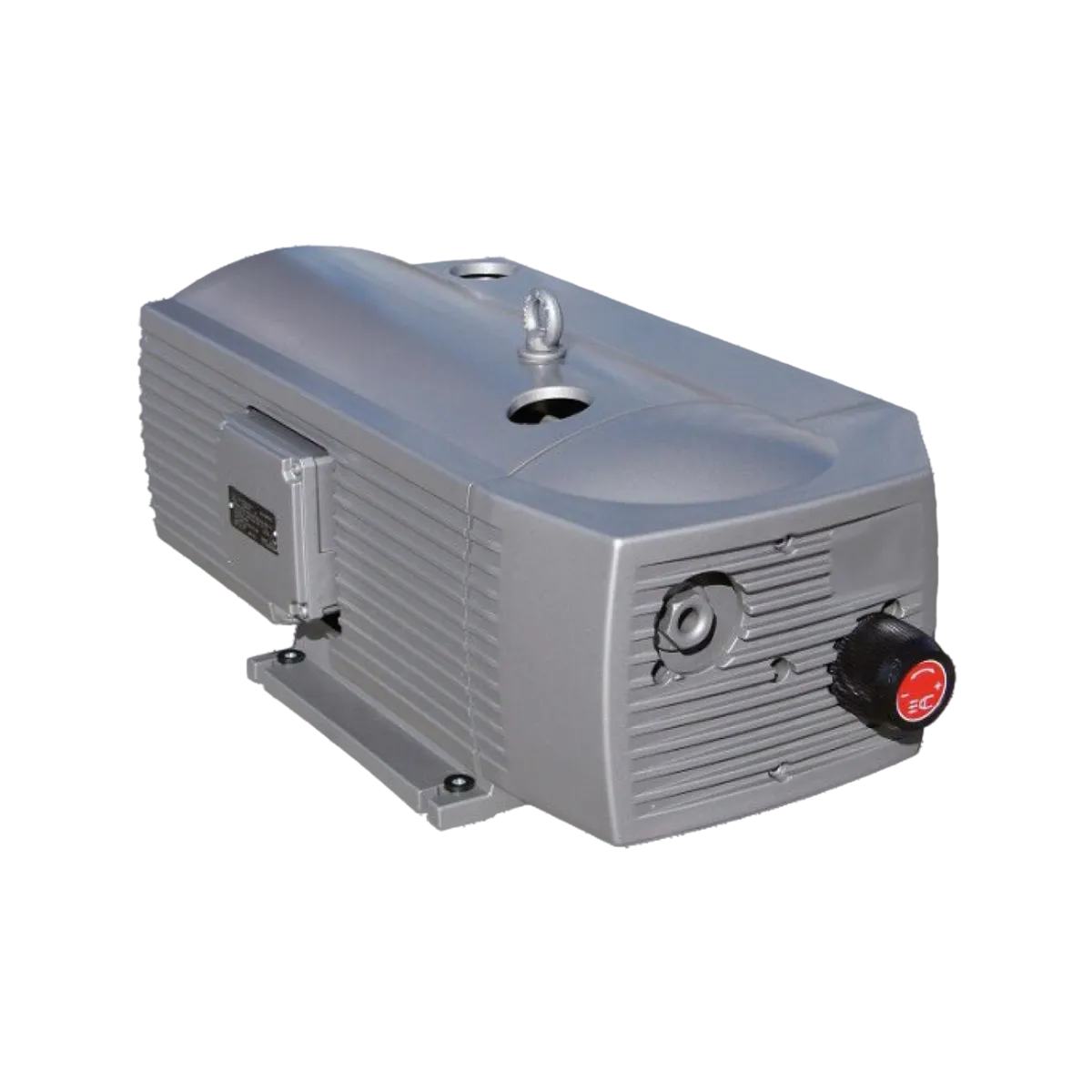

REICH DP 4.10 – DP 4.40 dry rotary vane vacuum pumps and compressors
Self-lubricating multi-blade rotor, efficient compression in moving cavities.
1,00 €
Request more details about the product
The pump is equipped with a multi-vane rotor, which is centrifugally mounted. As the rotor rotates continuously, the vanes slide, forming a cavity between the vanes and the cylinder. The pumped medium is drawn in and trapped in these cavities. It is then compressed by the continuous rotation and expelled toward the outlet. Sealing is achieved by high-performance, self-lubricating vanes.
Their technical specifications include: compact, reliable, and efficient—these are the outstanding features of the REICH DV series dry rotary vane vacuum pumps and compressors. Thanks to their lubricant-free operation, they can be used in numerous industrial applications requiring fast, clean vacuum or compressed air. They include vacuum pumps, compressors, and combined vacuum pump and compressor units.
Description:
| Model | Nominal Flow (m³/h) | Nominal Power (KW) | Motor Voltage (V) | Speed (RPM) | Vacuum (mbar) | Sound Level dB(A) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|
| Three-phase | Single-phase | Three-phase | Single-phase | ||||||
| DP 4.10 | 12 | 0.44 | 0.44 | 202-300/350-520V | 230V±10% | 1700 | 150 | 62 | 15 |
| DP 4.16 | 19 | 0.66 | 0.66 | 202-300/350-520V | 230V±10% | 1700 | 150 | 64 | 22 |
| DP 4.25 | 30 | 0.9 | 0.9 | 190-290/330-500V | 230V±10% | 1700 | 150 | 67 | 28 |
| DP 4.40 | 48 | 1.5 | 1.5 | 190-290/330-500V | 230V±10% | 1700 | 150 | 72 | 39 |
