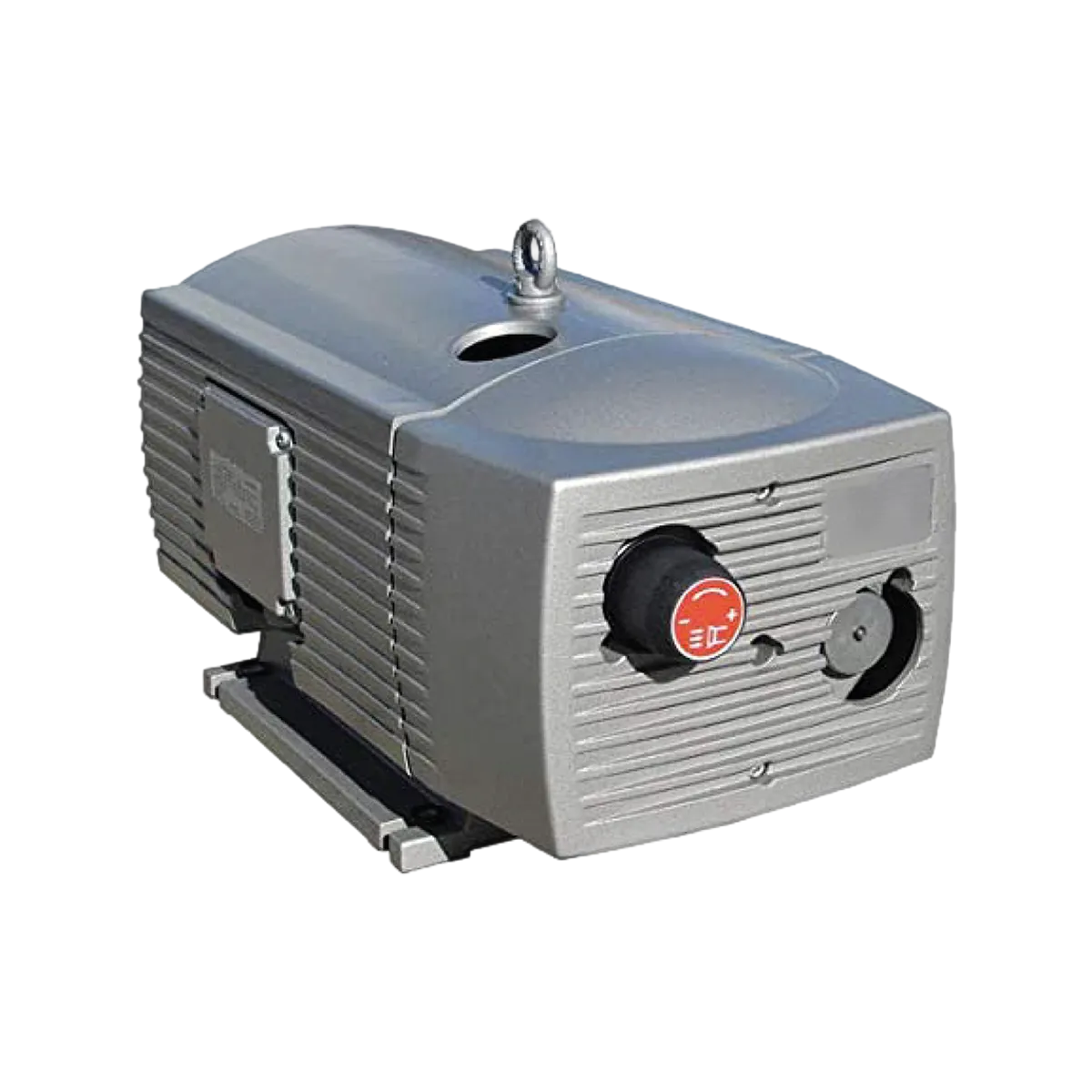

REICH DV 4.10 – DV 4.40 dry rotary vane vacuum pumps and compressors
Self-lubricating multi-blade rotor, efficient compression in moving cavities.
1,00 €
Request more details about the product
The pump is equipped with a centrifugally mounted multi-blade rotor. As the rotor rotates continuously, the vanes slide, forming a cavity between them and the cylinder. The pumped fluid is drawn in and trapped in these cavities. It is compressed by continuous rotation and sent to the exhaust port. Sealing is achieved by high-performance, self-lubricating vanes.
Compact, reliable, and efficient: these are the distinguishing features of the REICH DV series dry rotary vane vacuum pumps and compressors. Thanks to their lubricant-free operation, they can be used in numerous industrial applications requiring vacuum or fast, clean compressed air. These include vacuum pumps, compressors, and combination vacuum pumps and compressors. Its technical specifications include:
| Model | Nominal Flow (m³/h) | Nominal Power (KW) | Motor Voltage (V) | Speed (RPM) | Vacuum (mbar) | Sound Level dB(A) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|
| Three-phase | Single-phase | |||||||
| DV 4.10 | 12 | 0.44 | 202-300/350-520V | 230V±10% | 1700 | 150 | 62 | 15 |
| DV 4.16 | 19.2 | 0.66 | 202-300/350-520V | 230V±10% | 1700 | 150 | 64 | 22 |
| DV 4.25 | 30 | 0.9 | 190-290/330-500V | 230V±10% | 1700 | 150 | 67 | 28 |
| DV 4.40 | 48 | 1.5 | 190-290/330-500V | 230V±10% | 1700 | 150 | 72 | 39 |
